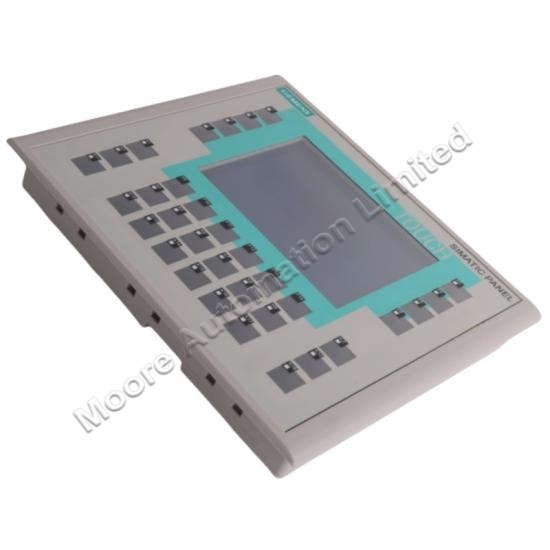

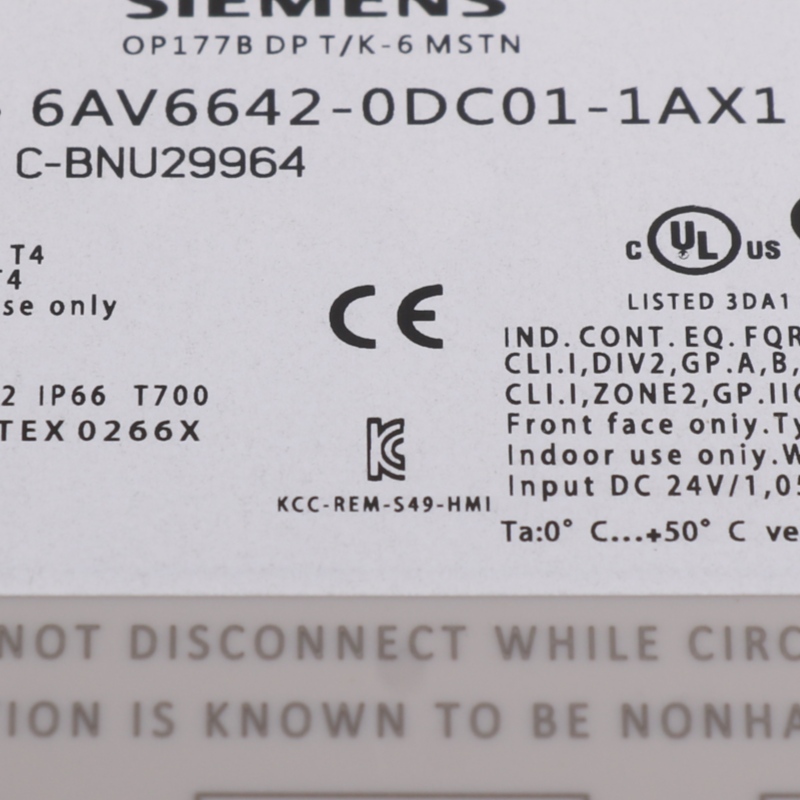

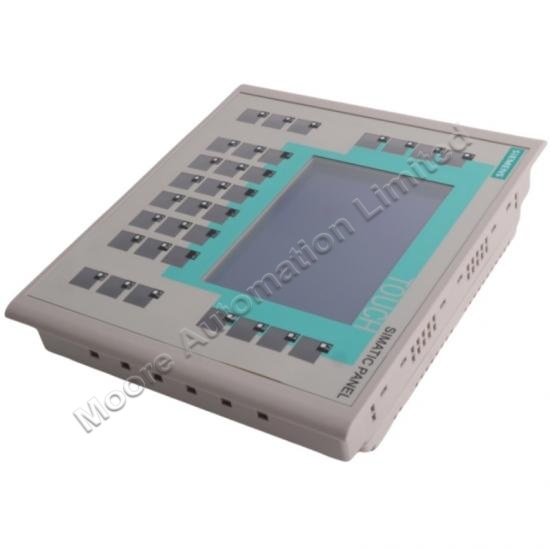

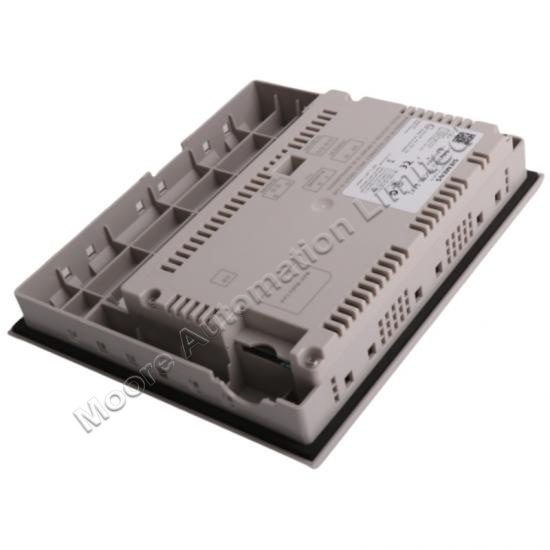

Siemens 6AV6642-0DC01-1AX1 Operator Interface

Introduction In today's industrial automation landscape, the accuracy and operational stability of analog signal processing directly determine production process efficiency and on-site safety. Yokogawa Electric's ASS9881 DE-02 analog I/O module is a specialized component developed specifically for high-precision analog input and output, seamlessly integrating into various complex industrial control systems. The module utilizes a 24V DC power supply and incorporates a dedicated voltage conversion circuit to stabilize the input voltage to 5V DC, providing power for the core signal processing unit. Furthermore, its redundant backup power supply automatically switches to the main power supply in the event of fluctuations or even brief interruptions, ensuring uninterrupted module operation. This makes it an ideal component for critical industrial applications such as petrochemicals and nuclear power. Combined with its compact design, robust environmental protection, and customizable signal range, the ASS9881 DE-02 demonstrates exceptional adaptability for precise analog signal control.  Core Competitiveness of the ASS9881 DE-02 Module The ASS9881 DE-02 module significantly improves the operational efficiency and stability of industrial control systems with its numerous unique features. Its core advantages are primarily reflected in the following aspects: The module's primary highlight is its ultra-high measurement accuracy. Its ±0.1% accuracy level minimizes errors in the transmission and reception of process signals. In industrial production, even a 0.5% measurement deviation can lead to product scrapping or equipment damage in scenarios such as precise chemical dosing and closed-loop pressure control in high-pressure pipelines. Therefore, this accuracy rating serves as a "safety barrier" for critical processes. Also noteworthy is its multi-signal compatibility. The module supports multiple signal types, including ±10V voltage signals, 0–20 mA, and 4–20 mA current signals, allowing users to flexibly configure the module based on the signal requirements of field sensors and actuators. This "all-compatible" feature eliminates the need for additional signal converters, simplifies system wiring, and reduces signal loss and latency associated with conversion. In terms of interference resistance, the module utilizes 1500V RMS channel-to-ground isolation technology, effectively shielding against strong electromagnetic interference, surge voltages, and other interference sources found in industrial environments. This ensures pristine signal fidelity even in high-noise electrical environments, often crowded with motors and inverters. Furthermore, its response speed exceeds 5 milliseconds, enabling instantaneous capture of sudden changes in process variables. This is crucial for automated production lines requiring dynamic adjustments, such as high-speed filling and real-time batching. In terms of environmental adaptability, the ASS9881 DE-02 meets IP67 p...

In this beautiful season of autumn, bringing refreshing coolness and reunions, Moore Automation hosted a unique Mid-Autumn Festival (Mid-Autumn Festival) event. Company colleagues gathered together to share the warmth of the festival and the joy of teamwork. The event began with everyone busy arranging gifts for each table. The exquisite small gifts, neatly arranged on the tables, were colorful and varied, filling every colleague with anticipation. Seeing the neatly arranged and beautiful gifts, everyone's faces lit up with excitement as they discussed their potential prizes. Then, the thrilling game of Bo Bing began. The dice tumbled across the table, making a crisp clinking sound. Every roll of the dice held everyone's breath in anticipation. Laughter and exclamations echoed, creating a lively atmosphere. Each round of Bo Pian was filled with excitement and excitement. Who would win the top prize, the ultimate winner of the table, became the focus of everyone's attention. In the Bo Bing round, the top scorers from each table gathered together to compete for the title of King of Kings. Everyone took turns rolling the dice, a mixture of excitement and tension, accompanied by continuous applause. Finally, when the winner emerged, he held a generous gift, his face beaming with joy, and the entire audience cheered him on. After the event, everyone gathered together for a meal. The fragrant food and lively conversation filled the entire Mid-Autumn Festival evening with warmth and joy. Amidst the laughter and joy, everyone not only felt the joy of the festival but also drew closer together, strengthening team cohesion. This Moore Automation Mid-Autumn Festival cookie-drawing event not only brought festive joy but also became an unforgettable moment in our company culture. The full moon brought families together, and the bond between us deepened. Everyone welcomed a brighter future with laughter.

Introduction Within industrial drive systems, effective management of deceleration energy represents a crucial operational requirement. The ABB SAFUR 80F500 braking resistor addresses this need by providing a robust solution for dissipating regenerative energy in motor control applications. This component ensures system stability while protecting drive components from voltage irregularities during braking cycles. Fundamental Principles of Dynamic Braking Dynamic braking resistors serve as energy dissipation devices that convert unwanted regenerative power into thermal energy. During motor deceleration, the electromechanical system functions as a generator, producing electricity that elevates the DC bus voltage. Without proper management, this energy accumulation can trigger protective shutdowns or cause component stress. These resistors create a controlled power dissipation path, enabling efficient motor braking while maintaining bus voltage within safe operating limits. Their implementation proves particularly valuable in applications demanding frequent speed changes or load reversal conditions. Product Series Overview: SAFUR Design Philosophy The SAFUR product family embodies ABB's engineering approach to braking resistance, emphasizing operational security and thermal reliability. These units incorporate advanced materials and construction techniques to ensure consistent performance under demanding industrial conditions. Manufactured with attention to thermal management and electrical safety, the series offers adaptable solutions for various drive configurations. The product design prioritizes compatibility while maintaining mechanical and electrical integrity throughout its service life. Technical Profile: SAFUR 80F500 Specifications The 80F500 model demonstrates specific engineering characteristics that make it suitable for medium-power applications: Electrical Parameters: 80-ohm resistance value with 500-watt continuous power dissipation capacity Voltage Compatibility: Designed for 400V AC industrial power systems with 500V DC dielectric strength Thermal Performance: Class F insulation system permits operation at elevated temperatures Environmental Adaptation: Operational from -25°C to +70°C ambient temperature range Response Characteristics: 0.5 millisecond voltage rise time capability Implementation Scenarios and Use Cases This braking resistor finds application across multiple industries where controlled deceleration is required: Industrial Automation: Robotic positioning systems and automated assembly equipment Material Processing: Conveyor synchronization and processing line coordination Power Transmission: Pump and fan drive systems requiring controlled stopping Manufacturing Systems: Production machinery with cyclic operation patterns Installation Guidelines and Operational Considerations Proper implementation requires attention to several technical aspects: Thermal Management: Ensure adequate airflow around the resistor body with mi...

Introduction In the field of industrial automation and control, equipment reliability is not just a basic requirement but also key to ensuring continuous production. The stable operation of complex systems such as General Electric's (GE) Mark Vie turbine control platform relies on high-performance communication components capable of operating continuously under extreme conditions. The GE DS200SLCCG1ACC LAN Communication Card is one such core component designed for these scenarios. This article details the functional features, model designation, and practical application value of this communication card in industrial environments. Core Role of LAN Communication Cards in Industrial Systems LAN communication cards play a vital role in industrial control systems. They serve not only as a bridge between control cabinets and external network devices but also facilitate the real-time transmission of operational data, status signals, and control commands. Unlike commercial network adapters, industrial-grade communication cards must possess anti-interference capabilities, resistance to harsh environments, and long-term operational stability. Such cards are typically used to connect engineering stations, operator interfaces, and high-level monitoring systems, forming the foundation for remote diagnostics and centralized control. Interpretation of the DS200SLCCG1ACC Model The model designation "DS200SLCCG1ACC" carries specific meanings: "DS200" indicates that the card belongs to the Speedtronic Mark Vie product series; "SLC" can be interpreted as System Loop Control or communication management functionality; "CG1ACC" distinguishes the hardware version or specific configuration. Complete model identification is crucial during maintenance and replacement to avoid compatibility issues caused by version mismatches. Environmental Adaptability Design of the GE DS200SLCCG1ACC This communication card reflects GE's high standards in industrial equipment design, with environmental parameters significantly outperforming those of commercial-grade products: An operating temperature range of -40°C to +70°C enables adaptability to various climatic conditions, from extreme cold to high heat; A storage temperature range extended to -40°C to +85°C ensures component safety during transportation and non-operational states; Support for non-condensing humidity environments of 5% to 95% effectively handles dry or humid working conditions. These features allow it to be deployed directly in various industrial settings without relying on additional temperature control facilities. Typical Application Scenarios This communication card is primarily used in GE Mark Vie turbine control systems, commonly in the following scenarios: Real-time control of gas and steam turbines for power generation; Coordinated operation of multiple units in combined cycle power plants; Process industries and energy sectors requiring high-reliability communication. By stably transmitting critical parameters ...

The Open Architecture Legacy of ABB Advant OCS ABB Advant OCS revolutionized industrial automation through its pioneering open architecture design. This innovative control system broke down traditional barriers in process automation by enabling seamless integration with equipment from multiple vendors. The system's modular design allowed plants to implement tailored solutions that could evolve with changing production needs. By establishing standardized communication protocols, Advant OCS created a foundation for true interoperability, demonstrating how open systems outperform closed proprietary solutions in flexibility and long-term viability. Network Resilience with ABB Bailey INFI 90 Building on this foundation, ABB Bailey INFI 90 introduced groundbreaking network architecture that redefined reliability in industrial environments. The system's distributed intelligence and peer-to-peer communication capabilities through its INFI-NET loop created a self-healing network infrastructure. This design ensured continuous operation even during component failures, providing unprecedented uptime for critical processes. The INFI 90's redundant architecture and fault-tolerant design established new benchmarks for system resilience, showing how distributed collaboration creates stronger operational frameworks. Operational Harmony through ABB Procontic The ABB Procontic series advanced these concepts by creating unified operational environments that harmonized engineering and maintenance functions. This platform integrated previously disparate functions into a cohesive workflow, significantly reducing engineering effort and minimizing operational errors. Procontic's consistent human-machine interface across all system levels enabled smoother operations and faster decision-making. The system demonstrated that true efficiency comes not just from individual component performance, but from the seamless integration of all operational aspects. The Collaboration Imperative in System Design These ABB systems collectively emphasize a crucial engineering truth: excellence emerges from collaborative design. Each platform showcases how intentional architecture for connectivity and interoperability produces superior outcomes. This technical reality mirrors organizational dynamics - systems that facilitate open communication, redundancy of skills, and shared purpose consistently outperform siloed alternatives. The evolution from OCS to Procontic illustrates how each generation built upon previous innovations while maintaining backward compatibility, much like successful teams honor institutional knowledge while embracing new methodologies. Building Human Networks Inspired by Technical Systems The principles embedded in ABB's system architecture provide valuable insights for team development. Just as these industrial platforms prioritize reliable connections and redundant pathways, effective teams require robust communication channels and cross-functional capabilities. Act...

Introduction Industrial production is shifting from traditional manual monitoring to highly automated and digitalized processes. While pursuing higher production efficiency and safer operations, manufacturers, energy plants, and chemical companies also need to collect, analyze, and manage massive amounts of process data in real time. This is why the Distributed Control System (DCS) emerged. Through a layered structure and network communication, it integrates distributed equipment and complex processes into a centrally manageable, flexibly scalable automation platform, becoming a crucial foundation for the digitalization of process industries. Core Concepts and System Architecture of a DCS A DCS, commonly known as a distributed control system in China, divides the production site into several control nodes. The nearest control unit collects data, executes control logic, and then transmits it to a higher-level monitoring platform via a high-speed network, enabling unified management of all plant-wide equipment. Its key features include: Distributed processing: Each field controller operates independently, reducing the risk of single points of failure. Centralized monitoring: A central operation station provides real-time visibility into process status, alarms, and trend curves. Hierarchical Management: Forming a layered architecture from the field instrumentation layer to the process control layer, and then to the management and decision-making layer. Flexible Configuration: Supports rapid adjustment of control strategies and process displays to meet changing production needs. This design makes DCS more suitable for large and complex process scenarios than earlier single-loop instrumentation systems, and is particularly widely adopted in the chemical, power, petrochemical, and metallurgical industries. Comparison with Traditional Control Methods 1. Clear Advantages High Reliability and Security With redundant CPUs, dual-network ring communication, and modular backup, DCS significantly reduces production downtime caused by control failures. For example, after upgrading to a redundant architecture, a petrochemical plant saw its annual unplanned downtime drop by 60%, reducing direct losses by nearly 4 million yuan. Centralized Operations and Remote Visualization Operators can monitor data from thousands of measurement points on an integrated interface, quickly identifying anomalies and reducing the number of manual inspections. Using a DCS platform, one power plant reduced the number of inspection personnel by approximately one-fifth, saving approximately 2 million yuan in annual labor costs. Flexible Expansion and Easy Maintenance Adding new production lines requires only expanding control modules or adding communication nodes, eliminating the need for extensive rewiring. A polymer plant reduced overall renovation costs by approximately 30% during capacity expansion, while also shortening the project cycle by over two weeks. 2. Challenges High Initia...

The SPEEDTRONIC™ Legacy: Foundations of Turbine Control GE's SPEEDTRONIC™ platform established unprecedented standards in turbine management, beginning with the pioneering Mark I and Mark II systems. These initial digital control architectures revolutionized power generation through enhanced operational reliability and performance metrics. The technological progression continued through Marks III, IV, and V, with each generation introducing superior computational capabilities, refined reliability parameters, and more sophisticated control methodologies. The Mark V configuration particularly set industry benchmarks with its distributed architecture and triple-modular redundant processing for critical protection functions. This evolutionary pathway established the fundamental principles for contemporary turbine management systems, highlighting GE's dedication to engineering excellence and operational security within power generation environments. Contemporary Control Architectures: Mark VI and Mark VIe Platforms Advancing from established technological foundations, GE launched the Mark VI and subsequent Mark VIe systems, embodying the current generation of turbine management technology. The Mark VI platform incorporated sophisticated networking capabilities, enhanced diagnostic features, and improved human-machine interface components. Its successor, the Mark VIe, introduced a transformative distributed control framework utilizing Ethernet-based network structures and modular design elements. This architecture provides exceptional flexibility, scalability, and integration potential while maintaining the rigorous protection protocols that characterized earlier SPEEDTRONIC™ implementations. Both systems deliver comprehensive management solutions for gas and steam turbines, enabling operators to maximize performance, reliability, and operational efficiency across diverse power generation scenarios. Excitation System Advancement: EX2000 to EX2100e Platforms GE's excitation technology evolved alongside their control systems, with the EX2000 establishing fundamental parameters for modern generator excitation technology. The EX2100 series introduction marked substantial technological progress, delivering enhanced performance characteristics and operational reliability. The subsequent EX2100e excitation architecture represents current technological leadership, incorporating advanced digital control algorithms, refined thyristor technology, and superior communication capabilities. These systems ensure precise voltage regulation, advanced protection functionality, and seamless interoperability with GE's turbine control platforms. The progression from EX2000 through EX2100 to EX2100e demonstrates GE's continuous innovation in excitation technology, guaranteeing optimal generator performance and network stability. Drive System Technology: LCI and GE Drive Solutions GE's drive system portfolio, including the innovative LCI (Load Commutated Inverter) Innovation ...

Introduction In industries such as petrochemicals, power generation, and heavy industry, predictive maintenance is increasingly replacing traditional reactive inspections and becoming a crucial tool for ensuring stable equipment operation. As a leader in condition monitoring, Bently Nevada's proximity probes and sensor systems, with their high accuracy and reliability, are core tools for vibration and displacement measurement in rotating machinery. The 3300 Series (including 5 mm, 8 mm, and 11 mm probes) is widely used in complex operating conditions due to its compliance with international standards and stable performance. These devices convert mechanical displacement into electrical signals, enabling engineers to identify potential equipment problems before they cause serious failures. Industry studies have shown that plants that adopt advanced vibration monitoring methods can reduce maintenance costs by approximately 30% and extend equipment operating life by 20–40%, demonstrating the value of Bently Nevada technology. System Design and Performance Highlights The 3300 Series probes excel in structural optimization and functional adaptability, with different models catering to diverse application requirements: 3300 5mm Proximity Probe, Sensor and Transducer System The compact design makes it suitable for installation environments with limited space. When used with an XL 8 mm extension cable and a 5 mm proximity sensor, it provides a stable voltage signal proportional to distance, enabling both static position measurement and dynamic vibration detection. Typical applications include keyphasor phase measurement, bearing operation monitoring, and speed detection. 3300 XL 8mm Proximity Probe, Sensor and Transducer System This system offers the most comprehensive performance in the series, fully complying with the mechanical structure and accuracy requirements of API 670 (4th Edition). Its key advantage lies in its interchangeable components. The probe, cable, and proximitor sensor can be combined without separate calibration, significantly reducing installation and maintenance time, which is particularly important for plants with a large number of measurement points. 3300 XL 11mm Proximity Probe, Sensor and Transducer System This system is ideal for applications requiring a wider measurement range. Its linear measurement range reaches up to 4 mm (160 mil) with a sensitivity of 3.94 V/mm (100 mV/mil). With dual European and American certifications, this model can be used in hazardous areas. The longer probe tip ensures accurate data even when the standard 8 mm probe's coverage is insufficient. In addition, the entire series features a wide temperature range: operating temperatures from -52°C to +100°C, with a storage limit of +105°C, ensuring long-term stability even in offshore drilling or high-temperature processing locations. Benefits and Economic Value Using Bently Nevada proximity sensing technology, companies can not only improve monitoring ac...
